• Mechanical efficiency — does not rely on electret charge technology

• Operating temperatures up to 200˚F (93˚C)

• Self-supporting DuraFlex®media made from virgin fiber; no wire support needed

• Support straps, pleat stabilizers, and die-cut frame provide maximum strength

• High capacity model designed for applications where higher efficiency and longer life are critical

• Available in 1" and 2" depth models (PerfectPleat HC M8 4" filter incorporates heavy-duty design)

• Environmentally friendly – no dies, no metal, fully incinerable

• MERV Rating: 8

• Filter Type: Pleat

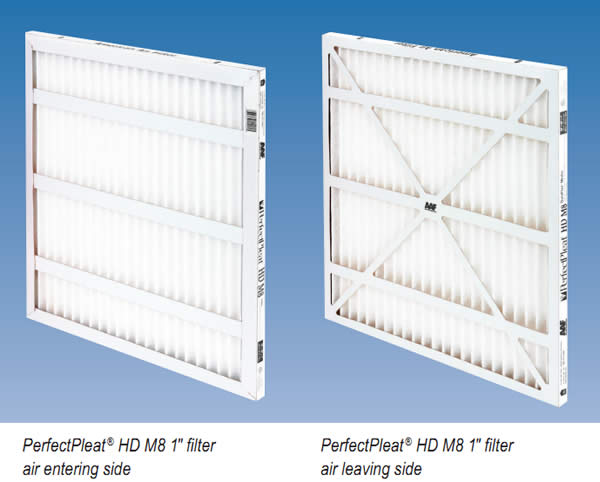

The PerfectPleat HD M8 filter is built to withstand more difficult applications, extremely low temperature, and higher airflow. Using AAF’s patented PerfectPleat filter as a base, our engineers developed the PerfectPleat HD M8 filter by incorporating maximum structural reinforcement into the PerfectPleat filter’s already extremely durable construction. At the heart of the PerfectPleat HD M8 filter is AAF’s patented, self supporting DuraFlex media. We retained the support straps and pleat stabilizer assembly characteristic of the innovative PerfectPleat filter media pack. We added a die-cut frame for additional strength and acrylic glue to bond the media pack to the cell sides and give the PerfectPleat HD M8 filter a broader operating temperature range.
